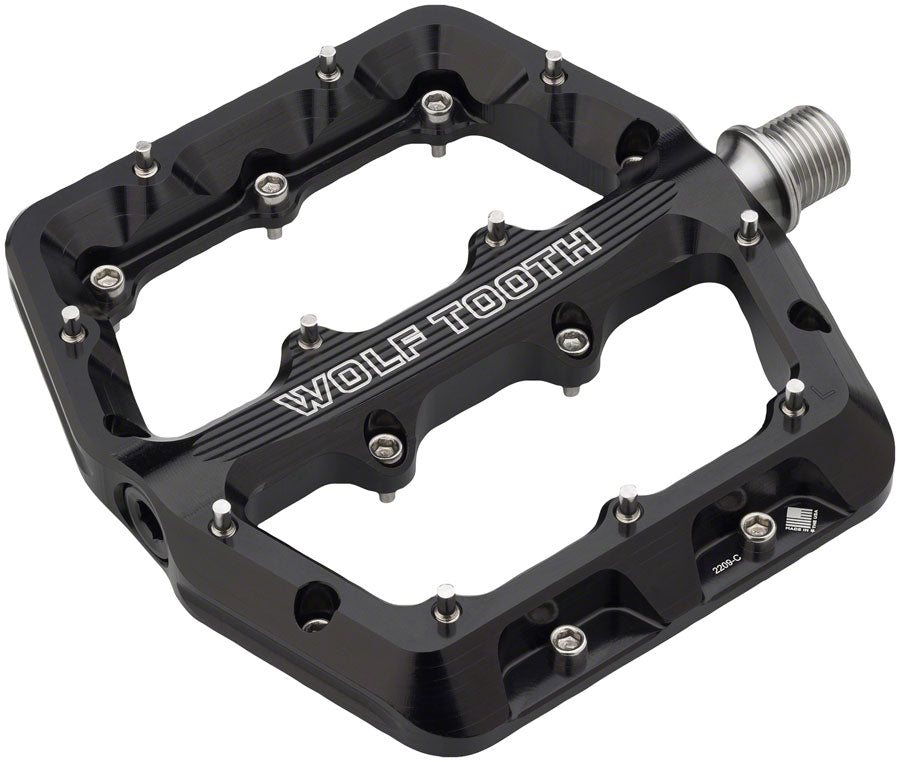

Wolf Tooth Waveform Pedals

Waveform Pedals are designed for all-mountain riding from XC to downhill. Available in two different sizes proportionally scaled to provide a supportive platform that's shaped to match the footprint of your shoe. They have a slim dual-concave profile that is 14mm thick at the perimeter and just 12.5mm thick in the center cradling your foot for optimal pedal feel. Each side of the pedal has 11 stainless steel rear-loading pins for loads of traction. The design also features a large tapered leading edge to deflect pedal strikes on rough terrain. A custom radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.

Proportionally designed platform shaped to match shoe profile

Slim concave profile with large tapered leading edge to deflect pedal strikes

3 low friction fully sealed cartridge bearings and 1 Igus bushing per pedal

V-ring rotary seal to protect against contamination

11 stainless steel rear-loading pins per side (pins 4.5mm tall) includes 6 extra grip pins

Fully serviceable with a set of hex keys no special tools needed

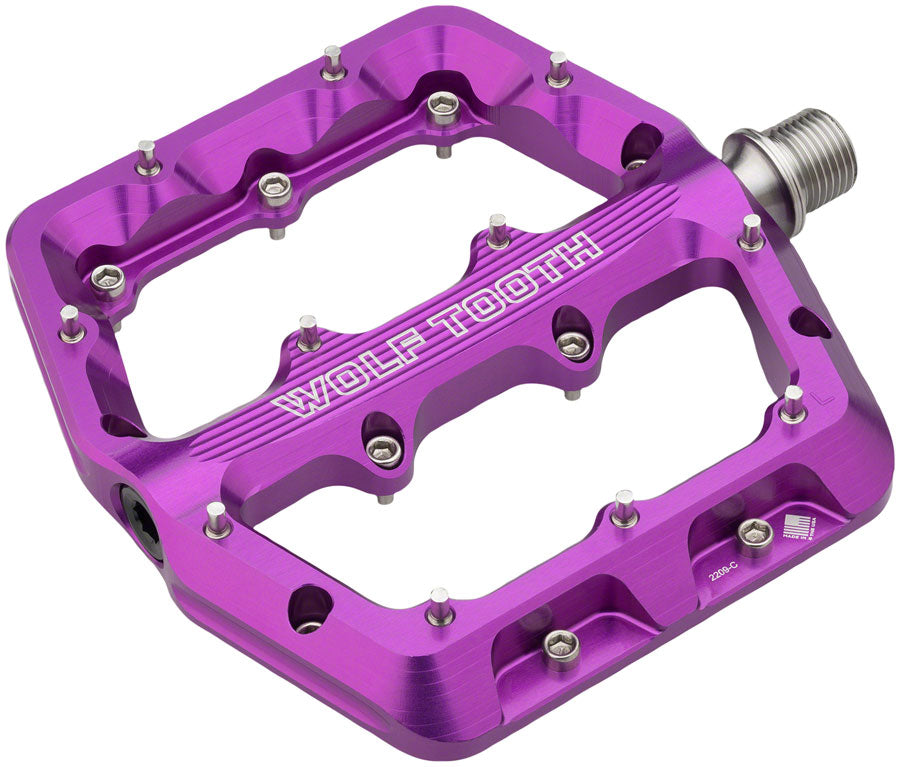

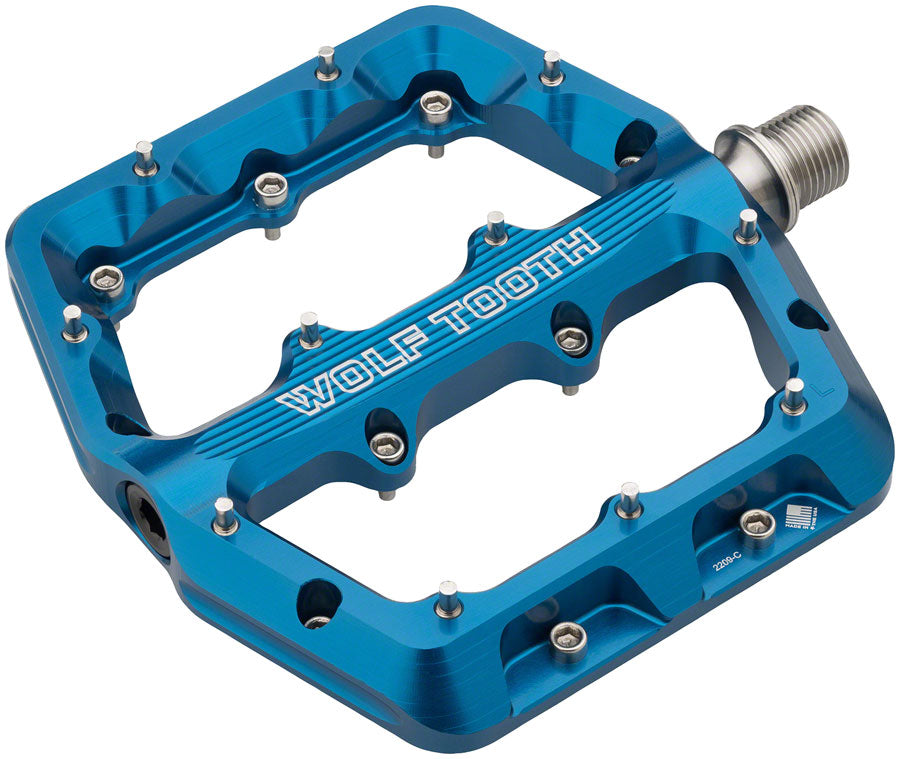

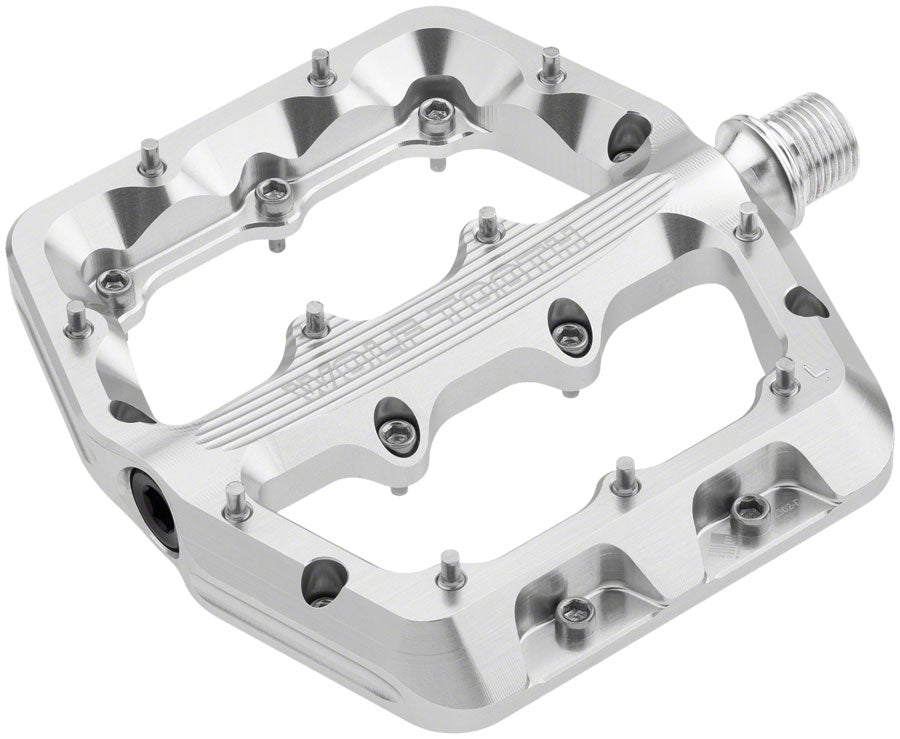

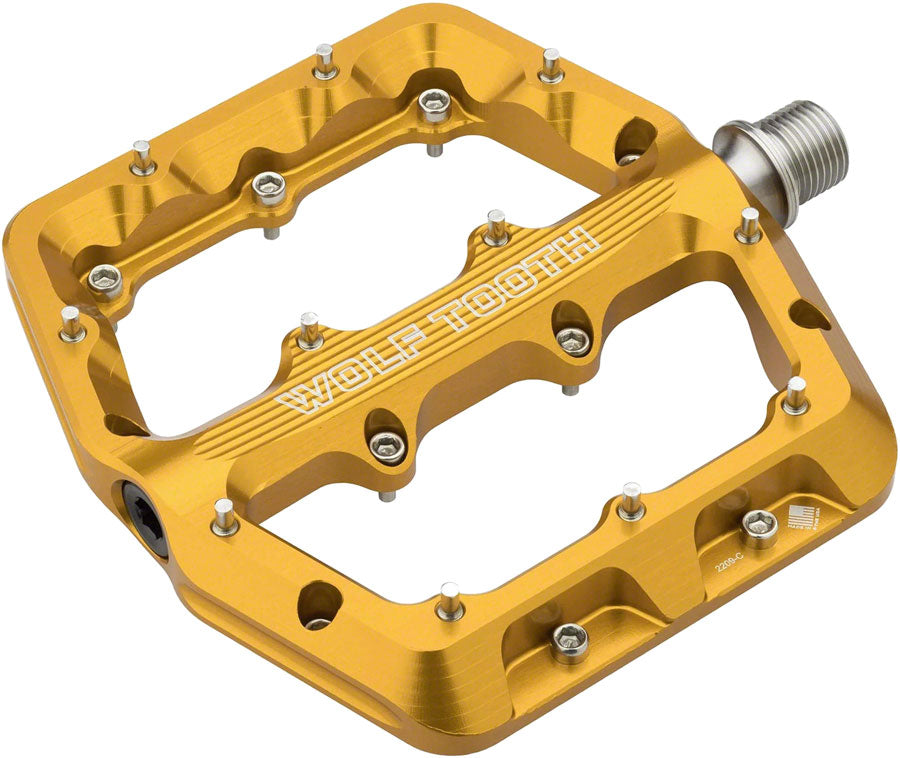

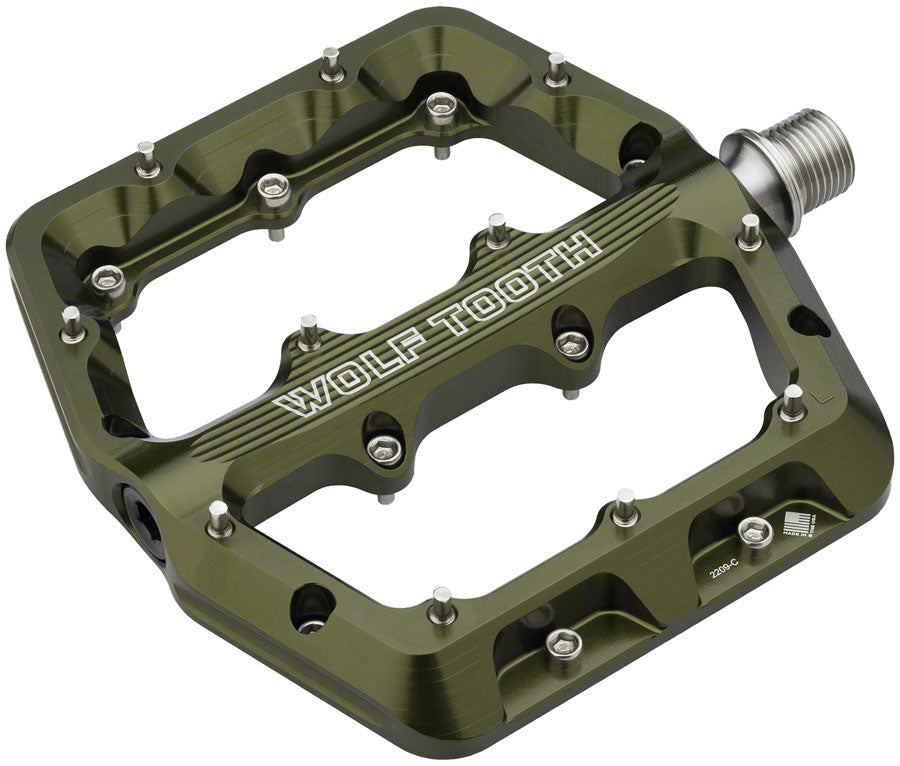

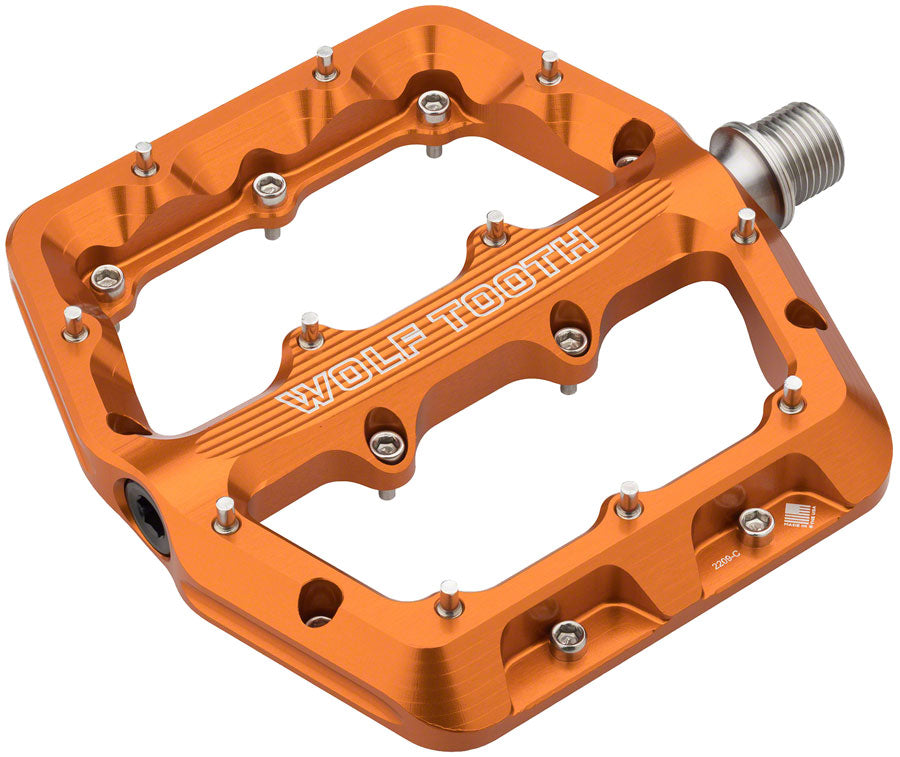

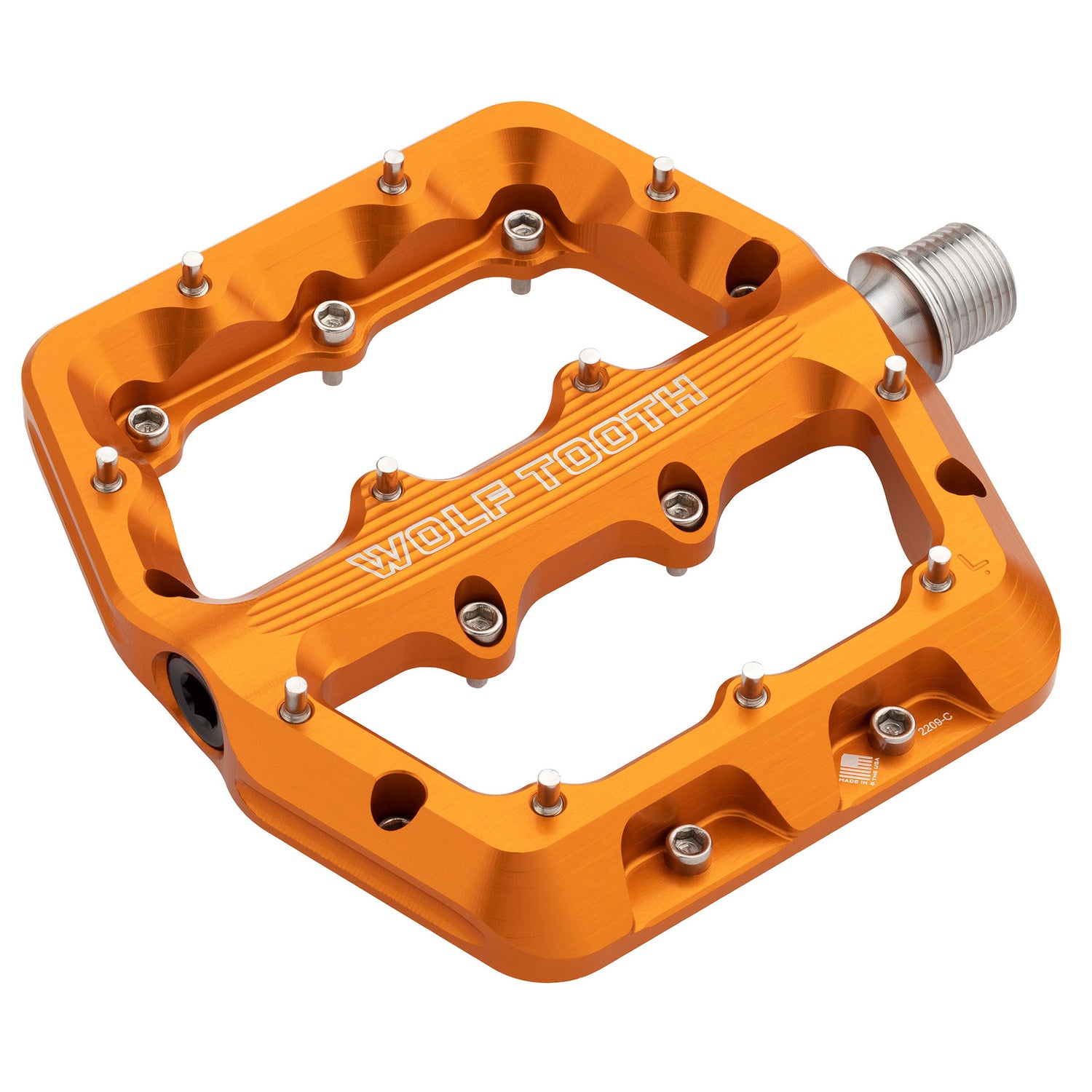

Color	Black, Blue, Espresso, Gold, Olive, Orange, Purple, Silver
Pedal Type	Platform
Pedal Spindle	9/16"
Pedal Body Material	Aluminum
Spindle Material	17-4 PH Stainless Steel
Defined Color	Black, Blue, Brown, Gold, Green, Orange, Purple, Silver
Model	Waveform Small
Spindle	Stainless Steel
Size	9/16"
Body Material	Aluminum
Weight	380g
