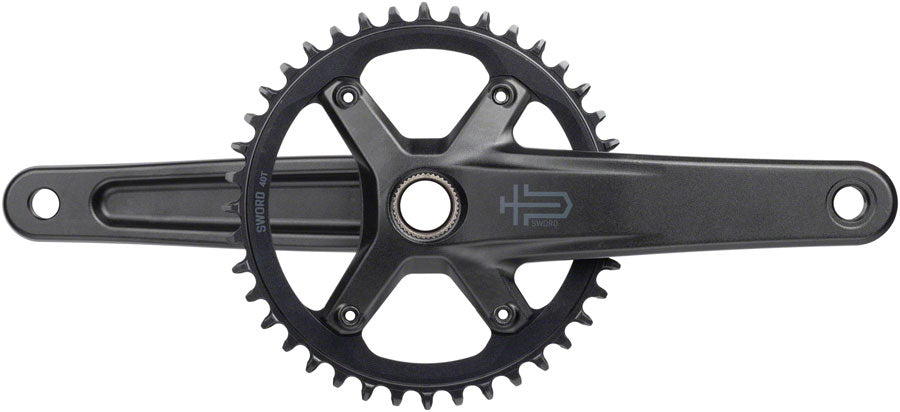

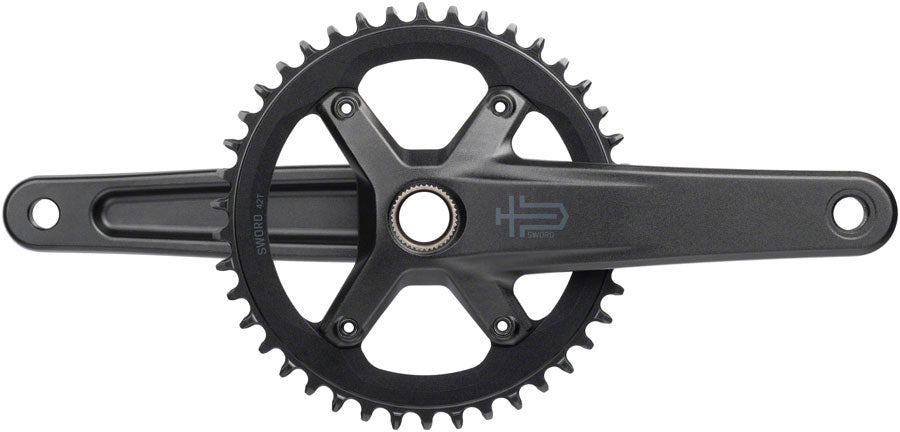

microSHIFT Sword 1x Crankset

The Sword 1x crankset is designed for simplicity. With a single chain-retaining ring mounted to the crankset's outer ring position it pairs perfectly with the rest of the Sword 1x drivetrain to give you the stiffness chain security and ease of ownership you expect from a 1x drivetrain. It's designed to be as compatible as possible: the 24mm spindle is compatible with a ton of aftermarket bottom brackets and it's easy to convert from a 1x to a 2x crank by simply installing microSHIFT Sword 2x chainrings.

Wide design optimized for 50mm chainline

24mm spindle compatible with Shimano bottom brackets

1x chain-retaining ring works well with clutch derailleur

Easy conversion from 1x to 2x

Color	Gray
Rings	40, 42
Number of Chainrings	Single
Crank Length (mm)	165, 170, 172.5, 175
Crank Intended Use	Gravel
Drivetrain Speeds	10
Weight	790, 810
BB Included	No
Pedal Spindle	9/16"
Spindle Interface Type	Shimano Hollowtech II
Chainring BCD	110 Shimano Asymmetric
Chainline/Hub Compatibility	135/142 MTB Hubs
Defined Color	Gray
