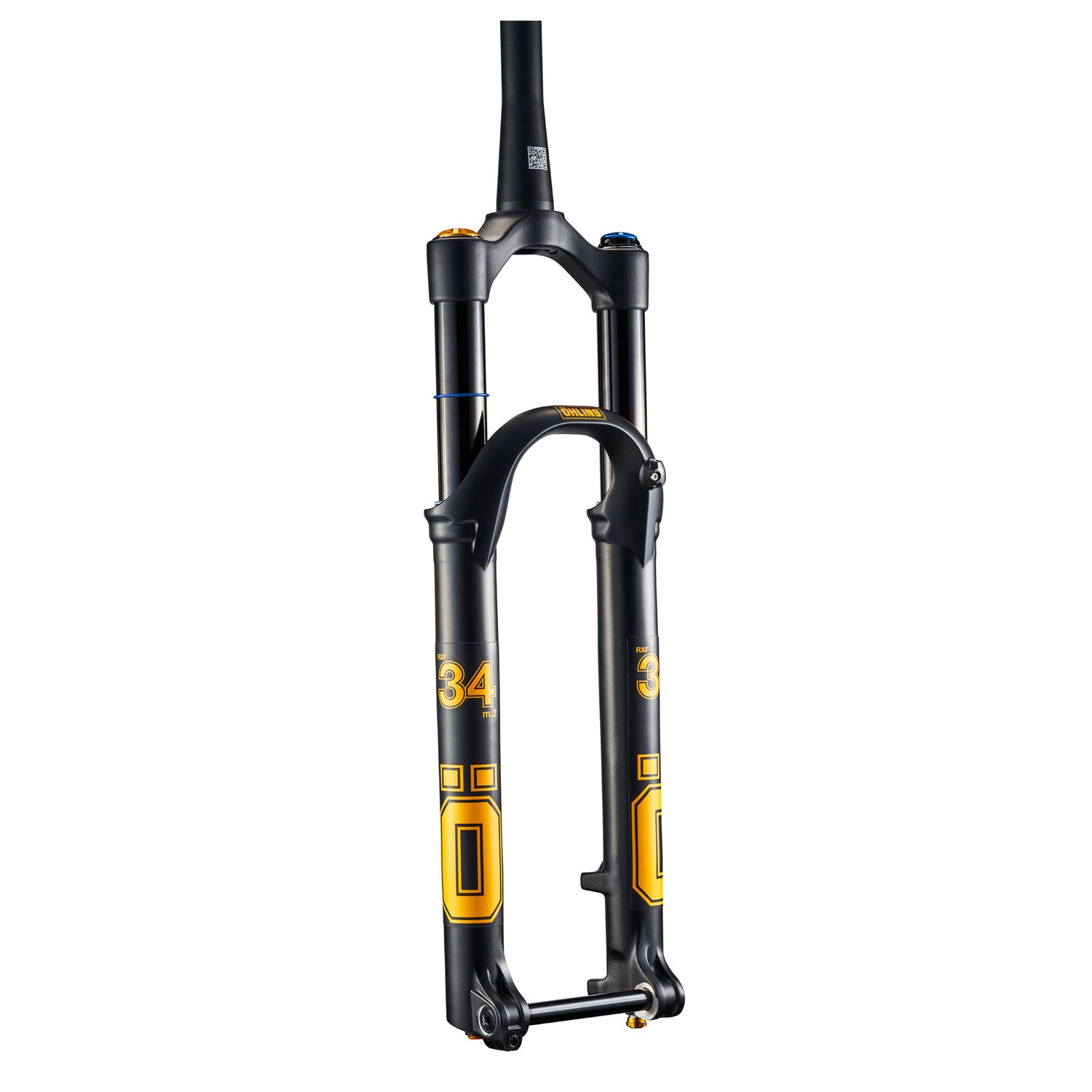

Ohlins RXF34 M.2 Air 29" Fork

• Short travel trail/downcountry fork with 34mm stanchions
• OTX18 damper is 27% lighter and optimized for faster and more fluid trail riding than the TTX18 damper
• 15 clicks of low speed compression and rebound adjustment
• 3 clicks of high-speed compression adjustment, climb mode in 4th position
• Air spring has a positive and self balancing negative chamber and it can be tuned with a new spacer system
• 74mm post mount disc brake mount, 160mm to 203mm max rotor usage
• Boost 15x110mm thru-axle, floating axle to decrease friction
• Max tire size: 29 x 2.6"
• E-Bike approved

Model	RXF34 M.2 Air
Wheel Size	29"/27.5"+
Steerer (Stem/Race)	Tapered (28.6/40mm)
Offset	44mm
Travel	130mm, 140mm
Spring Type	Air
Brake Mount	Disc Only (PM-160)
Dropout	15x110mm Boost
Weight	1698g
Color	Black
