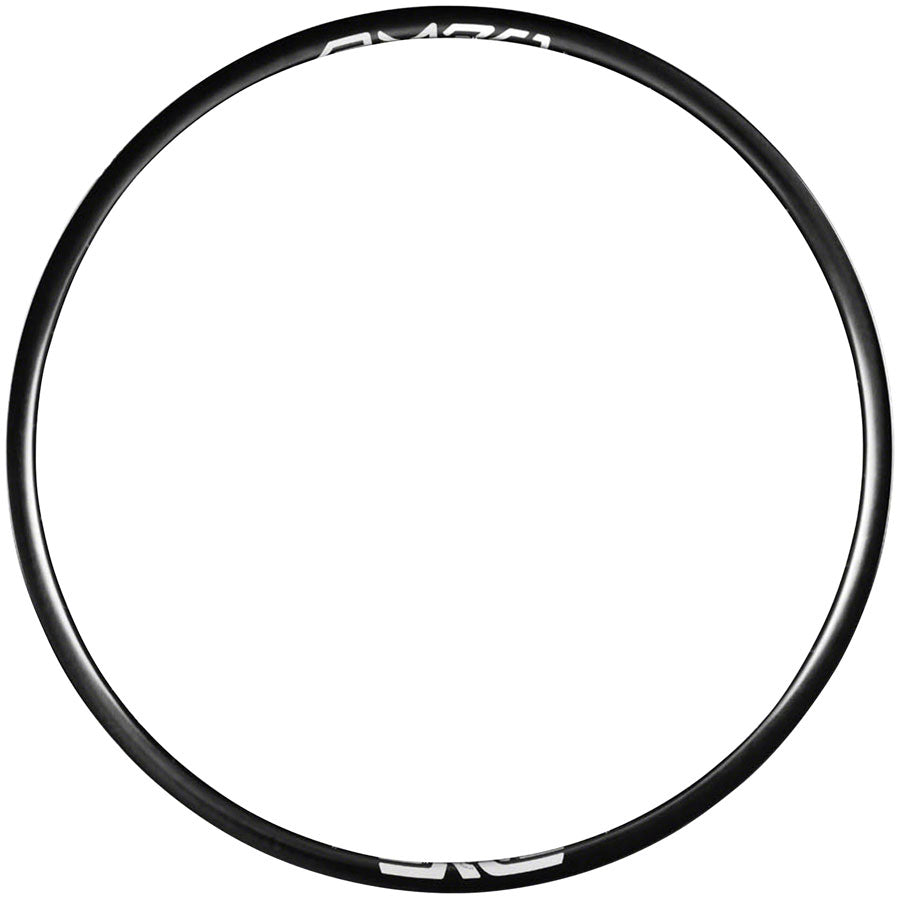

ENVE Composites AM30 Foundation Rim

With a unique shape and ride-tune the AM30 balances compliance and vibration damping for all-day comfort while retaining quick cornering acceleration and gravity-rated strength. Offset spoke holes balance spoke tensions to help preserve the wheels’ quickness and the spoke’s integrity – despite the rim’s additional compliance.

Wide Hookless Bead dissipates impact energy preventing the rim from slicing the tire

Molded Spoke Holes for more reliable wheel builds

Molded conical seats allow the nipples and spokes to articulate preventing premature fatigue and failure

Asymmetric spoke holes for more balanced spoke tensions

30mm internal rim width supports 2.3 - 2.6" tires

Rim Width (External)	39
Rim Width (Internal)	30
Manufacturer Spec ERD (mm)	564, 605
Valve	Presta
Color	Carbon
Weight	470, 510
Wheel Size	27.5", 29"
Defined Color	Black
ISO Diameter	584 / 650b / 27.5", 622 / Road / 29"
Hub Drilling	28
Rim Depth (mm)	20
Rim Material	Carbon
Tire Type	Tubeless Ready
